SmartPC-Ai1 Series
We designed SmartPC-A1I to solve the challenges we face in Industrial Computer Vision.
Our main customers requested a new device that could solve common problems in that field: durability, simplicity of deployment, ultra-compact design, and top performance.
It means no more hundreds of different cables to choose and connect, no more different vendors for different parts of the vision system, no more dozens of different failure points to analyse in case of an incident.
The optical system is from famous Italian brand Opto Engineering, of which we are the sole distributor in Korea, while the computing power comes from NVIDIA AI-Edge devices (4-6 and 8 cores).
The high-power illumination is handled by an internal controller and totally managed by onboard software.
Another innovation that we introduced can be found in the automated remote cloud training. Training task for Deep Learning is a big resource and time-consuming task. The traditional approach solves this problem with very expensive workstations that are good for training but overpower all the other tasks. We removed this requirement from the on-site production device, which now can be robust, fast for inference and low cost. After the labelling, the dataset is transferred to the cloud in a click of a button and the training starts automatically. When the training is completed by our powerful servers, the inference-model is transferred back to the production device, and the operations can start.
Ai1 innovative approach

SmartPC-Ai1 includes:
- Industrial Computer
- 5Mp 2/3” camera
- Telecentric lens
- Mirrors system
- High power illumination
- High power Light controller
- Aluminum clamping
- Linear stage Z axis
- Software deep learning based
- PLC, triggering, encoders communication ready
- Customizable GUI (Logo, colors)
- Protective windows (Sapphire)
- Motorized focus

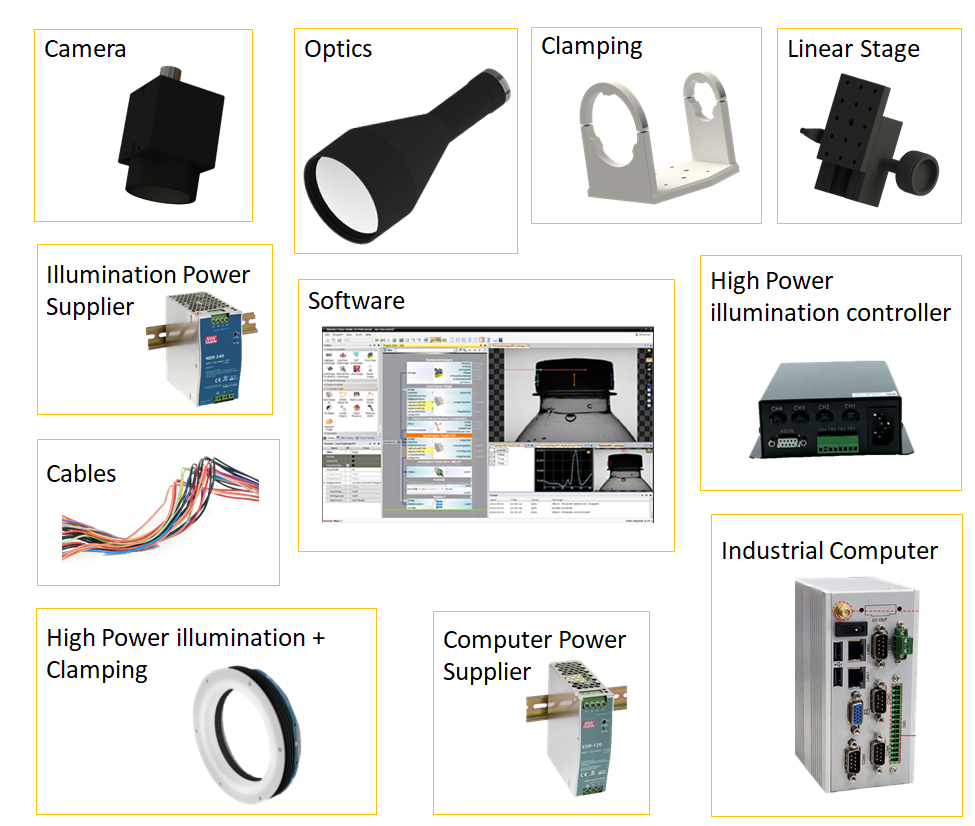

Traditional Approach

Computer Hardware
- Fast= based on NVIDIA AI Supercomputers in 3 different configurations 4-cores, 6- cores and 8-cores.
- Robust= rugged hardware with industrial. compliant connectors and opto-isolated GPIO
- Versatile= integrated current controller for high power illumination with I/O for the camera trigger (encoder or sensor).

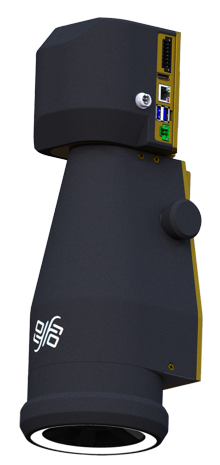

- Super compact= stand alone version including the software is available for customized applications.

Ports

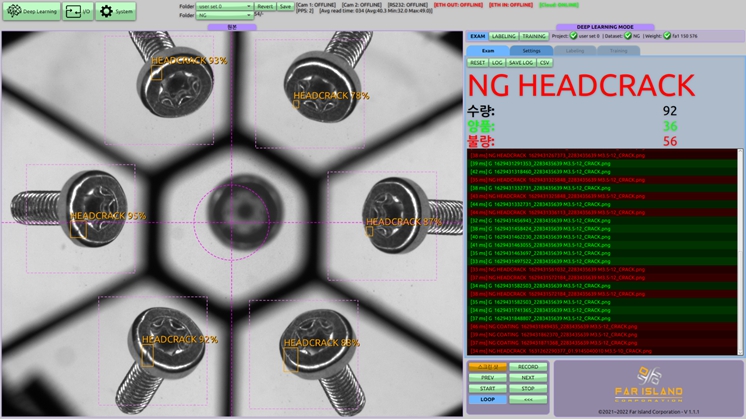

Software
- Fast= proprietary libraries optimized on our hardware to run on GPU at the maximum performances
- Robust= software is made ad-hoc on the hardware to optimize speed, driver compatibility and user experience.
- Versatile= deep learning feature allows the inspection of any kind of object as far as it is visible by the vision system.
- Innovative= the end-user can directly label the pictures and train the model on the cloud automatically and with few clicks.

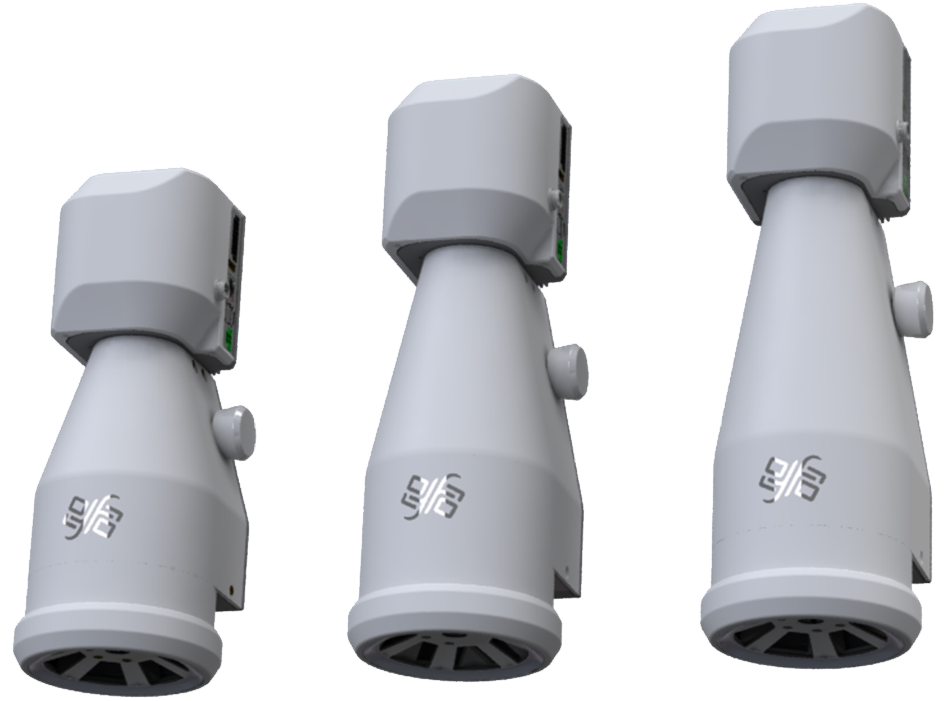

SmartPC-Ai1 TCPW (multi-mirrors system)
All in One solutions plug and play with deep learning-based software

Ai1 - All in One solution
TCPW-Ai1 is a total vision solution for inspection and quality control of objects from multiple views using a single shot.
- Available in 3 different FOV and 3 different angles.
- Software integrated in a user-friendly interface.
- Plug and Play set up let you save a lot of time.
- Easy HW and SW technical support.
- 4 steps easy process:
- acquisition
- labeling
- training on the cloud
- runtime of inference model on a powerful integrated edge device.

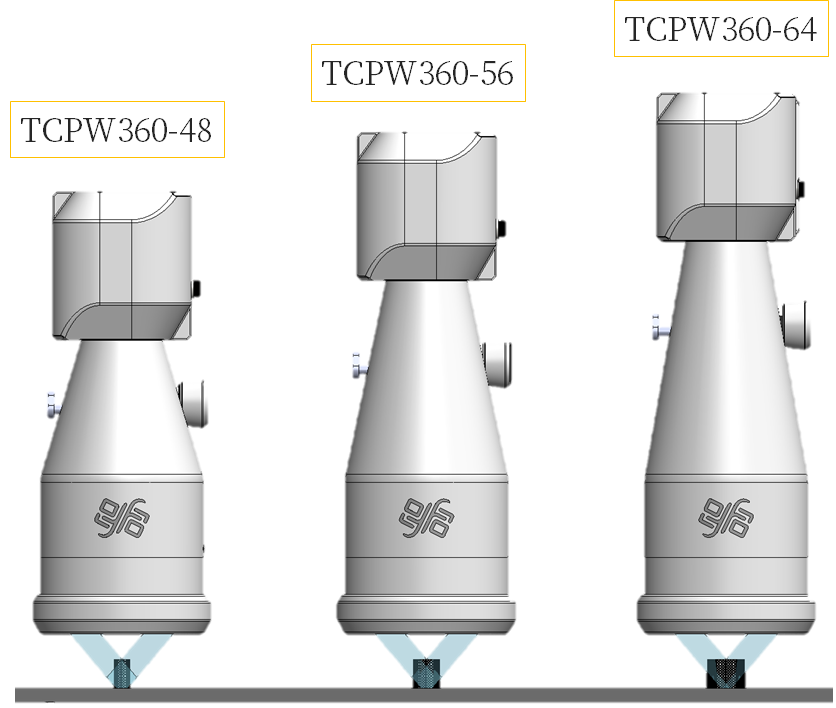

Accurate= Telecentric Optical system in 3 different FOV 0.184X, 0.157X and 0.138X

TCPW360-48 | FOV Camera | Mag | DOF | Angle | WD (mm) |
TCPW360-4830 | 46x38.5 mm | 0.184 x | 20 | 30 | Close | ~35 |
Nominal | ~50 |
Far | ~75 |
TCPW360-4840 | 46x38.5 mm | 0.184 x | 20 | 40 | Close | ~15 |
Nominal | ~30 |
Far | ~51 |
TCPW360-4850 | 46x38.5 mm | 0.184 x | 20 | 50 | Close | ~5 |
Nominal | ~15 |
Far | ~75 |
TCPW360-56 | FOV Camera | Mag | DOF | Angle | WD (mm) |
TCPW360-5630 | 54x45 mm | 0.157 x | 27 | 30 | Close | ~35 |
Nominal | ~53 |
Far | ~80 |
TCPW360-5640 | 54x45 mm | 0.157 x | 27 | 40 | Close | ~17 |
Nominal | ~31 |
Far | ~52 |
TCPW360-5650 | 54x45 mm | 0.157 x | 27 | 50 | Close | ~5 |
Nominal | ~17 |
Far | ~40 |
TCPW360-64 | FOV Camera | Mag | DOF | Angle | WD (mm) |
TCPW360-6430 | 61.5x51 mm | 0.138 x | 35 | 30 | Close | ~35 |
Nominal | ~55 |
Far | ~85 |
TCPW360-6440 | 61.5x51 mm | 0.138 x | 35 | 40 | Close | ~15 |
Nominal | ~33 |
Far | ~55 |
TCPW360-6450 | 61.5x51 mm | 0.138 x | 35 | 50 | Close | ~5 |
Nominal | ~18 |
Far | ~45 |
