CDAA360 Catadioptric All Around

Description

Ai1 is a Total Vision solution for inspection and quality control of 360 degrees side view of an objects using a single shot. Software integrated in a user-friendly interface. High power Illumination and controller included. Plug and Play set up. Save time and help with the technical support. Deep Learning 4 steps easy process: acquisition labeling training on the cloud runtime of inference model on a powerful integrated edge device.

Brand : Far Island

SmartPC-Ai1 Series

We designed SmartPC-A1I to solve the challenges we face in Industrial Computer Vision.
Our main customers requested a new device that could solve common problems in that field: durability, simplicity of deployment, ultra-compact design, and top performance.
It means no more hundreds of different cables to choose and connect, no more different vendors for different parts of the vision system, no more dozens of different failure points to analyse in case of an incident.
The optical system is from famous Italian brand Opto Engineering, of which we are the sole distributor in Korea, while the computing power comes from NVIDIA AI-Edge devices (4-6 and 8 cores).
The high-power illumination is handled by an internal controller and totally managed by onboard software.
Another innovation that we introduced can be found in the automated remote cloud training. Training task for Deep Learning is a big resource and time-consuming task. The traditional approach solves this problem with very expensive workstations that are good for training but overpower all the other tasks. We removed this requirement from the on-site production device, which now can be robust, fast for inference and low cost. After the labelling, the dataset is transferred to the cloud in a click of a button and the training starts automatically. When the training is completed by our powerful servers, the inference-model is transferred back to the production device, and the operations can start.

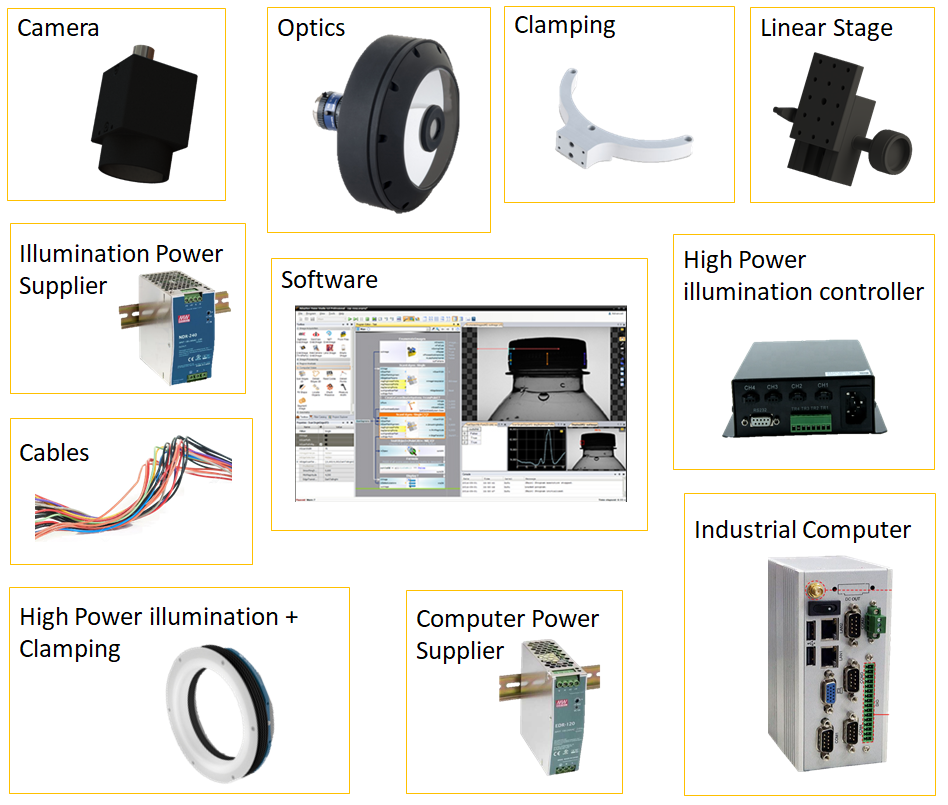

Traditional Approach

Ai1 innovative approach

SmartPC-Ai1 includes:

Industrial Computer
2/3” or 1/2” camera
Catadioptric lens
High power illumination
High power Light controller
Aluminum clamping
Linear stage Z axis
Software deep learning based
PLC, triggering, encoders communication ready
Customizable GUI (Logo, colors)
Manual iris and focus adjustment

Computer Hardware

Fast= based on NVIDIA AI Supercomputers in 3 different configurations 4-cores, 6- cores and 8-cores.
Robust= rugged hardware with industrial. compliant connectors and opto-isolated GPIO
Versatile= integrated current controller for high power illumination with I/O for the camera trigger (encoder or sensor).

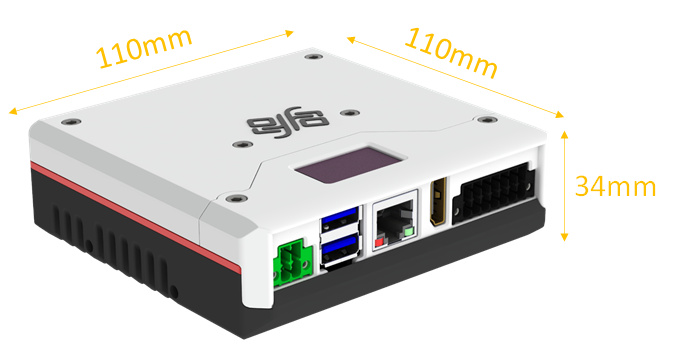

Super compact= stand alone version including the software is available for customized applications.

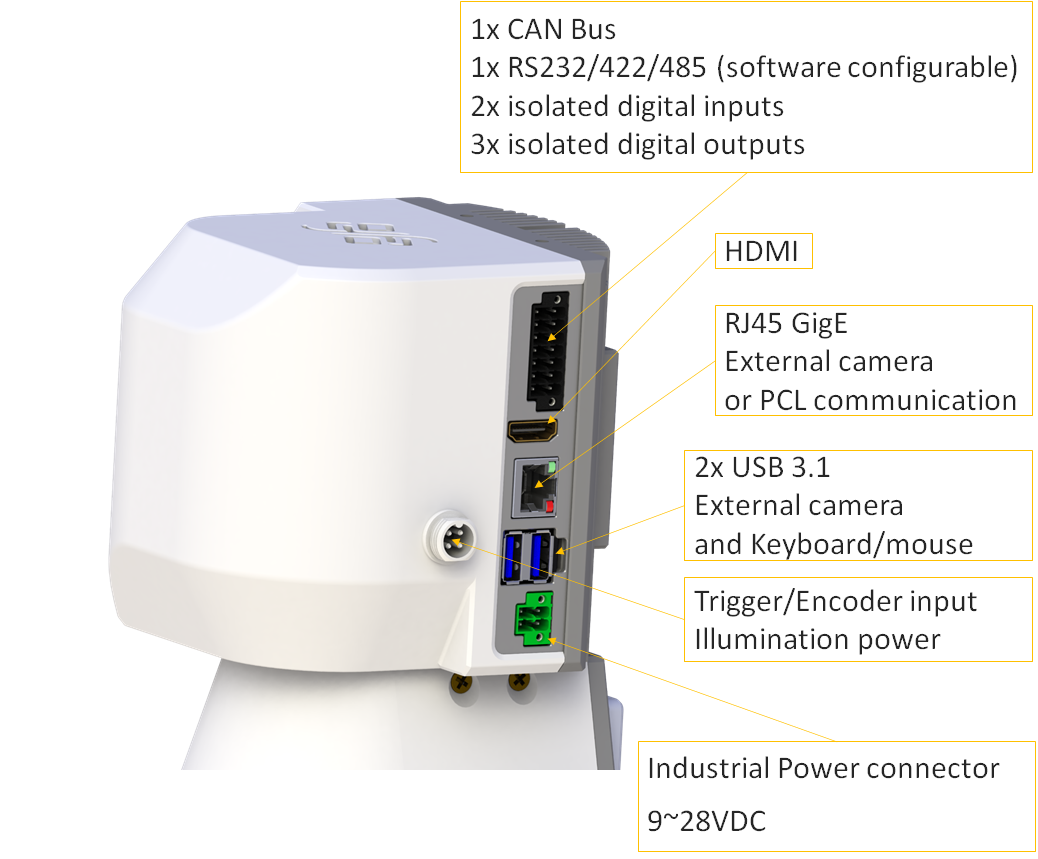

Ports

SmartPC-Ai1 CDAA (catadioptric system)

All in One solutions plug and play with deep learning-based software

SmartPC-Ai1 Series (multi-mirrors system)

Ai1 - All in One solution

Total Vision solution for inspection and quality control of 360 degrees side view of an objects using a single shot.

Software integrated in a user-friendly interface.
High power Illumination and controller included.
Plug and Play set up. Save time and help with the technical support.
Deep Learning 4 steps easy process:
acquisition
labeling
training on the cloud
runtime of inference model on a powerful integrated edge device.

Traditional Approach

Ai1 innovative approach

SmartPC-Ai1 includes:

Industrial Computer
2/3” or 1/2” camera
Catadioptric lens
High power illumination
High power Light controller
Aluminum clamping
Linear stage Z axis
Software deep learning based
PLC, triggering, encoders communication ready
Customizable GUI (Logo, colors)
Manual iris and focus adjustment

FOV

Optical System

Innovative= 360 degrees side view with one shot
Flexible= available for 1/3”, 1/2” and 2/3” cameras based on the speed requirements of the application
Robust= rugged hardware and closed case to protect from dust
Compact= super small form factor for a full side inspection.
